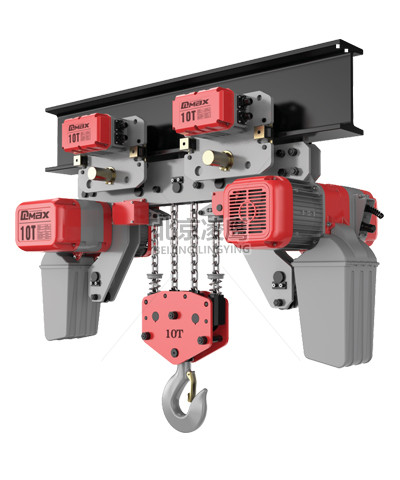

10吨DLEK环链电动葫芦超低运行式
10吨DLEK环链电动葫芦超低运行式
参数表：
|
MODEL型号 |
DLER 10-04 |
||
|
DLER 1/DLER2 |
DLER3 |
DLER4 |
|
|
Maximum load 最大载荷(≤6m/h) |
11.5t |
||
|
Rated load(Ton) 额定载荷(≤6m/h) |
10t |
||
|
Lifting speed(m/min)起升速度 |
单速2.7 |
双速0.8/2.7 |
变频0.4~2.7 |
|
Lifting motor power(kw)起升电机功率 |
单速3x2 |
双速1.1/3x2 |
变频3x2 |
|
Lifting motor speed(r/min)起升电机转速 |
单速1440 |
双速430/1440 |
变频200~1440 |
|
Running speed (m/min)运行速度 |
单速11 |
双速3.6/11 |
变频1.5~12 |
|
Running motor power(kw)运行电机转速 |
单速1440 |
双速430/1440 |
变频200~1440 |
|
Running motor power(kw)运行电机功率 |
单速0.75 |
双速0.18/0.5x2 |
变频0.5x2 |
|
Motor insulation class 电机绝缘等级 |
F |
||
|
Frequency(Hz)频率 |
50 |
||
|
Power Supply 工作电压 |
Ac 380V L1 L2 L3 〧 |
||
|
Control Volatage 控制电压 |
AC36V |
||
|
NO.of Load Chain 链条回数 |
4 |
||
|
Spec.of Load Chain 链条规格 |
11.2x34 |
||
|
Working level 工作级别 |
M5 |
||
|
I-Beam(mm)工字钢底面 |
150-220 |
||
|
|
长度（mm） |
|
H |
810 |
|
A |
700 |
|
B |
350 |
|
D |
1585 |
|
U |
613 |
|
I |
54.5 |
|
J |
54.5 |
|
M |
35 |
|
N |
80 |
|
K |
85 |
|
L |
80 |
|
T |
242 |
|
R |
167 |
